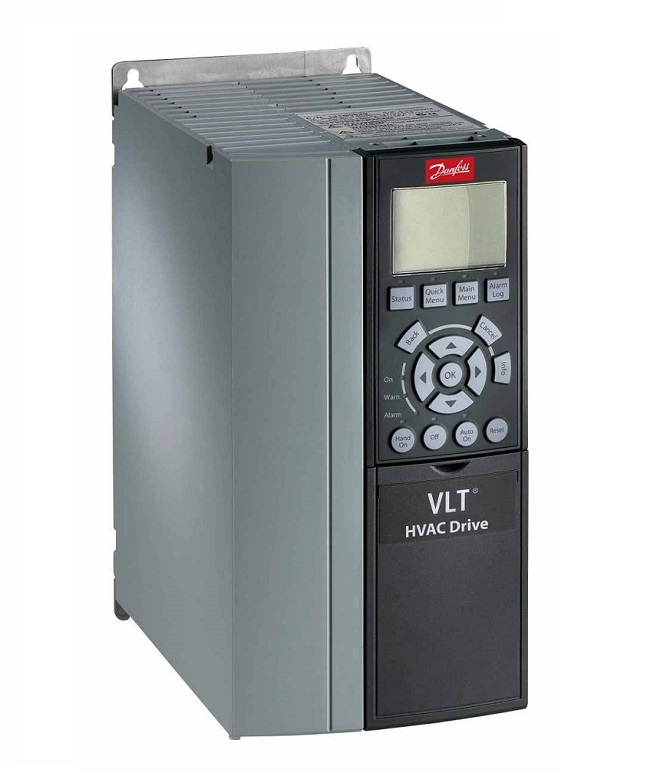

131B6768 DANFOSS DRIVES VLT HVAC Drive FC 102 22 KW / 30 HP, 380-480 VAC, IP55 / Type 12, RFI Class A1/B (C1..

131B6768 DANFOSS DRIVES VLT HVAC Drive FC 102 22 KW / 30 HP, 380-480 VAC, IP55 / Type 12, RFI Class A1/B (C1..

The model on this page is 131B6768 from the VLT HVAC Drive FC 102 series. Dedicated drive for pumps, fans and compressors in building management systems, with pre-programmed HVAC control and monitoring. Built for outdoor use and a minimum 10-year designed operational lifetime.

Technical data and ordering information for this Inverter Store catalogue item are given below.

Series Information

General characteristics of the VLT HVAC Drive FC 102 platform:

• Series Power Range: 1.1-800 kW (1x200-240 V: 1.1-22 kW; 3x200-240 V: 1.1-160 kW; 3x380-480 V: 1.1-560 kW; 3x525-600 V: 1.1-90 kW; 3x525-690 V: 1.1-800 kW)
• Series Voltage Range: 1 x 200-240 V, 3 x 200-240 V, 3 x 380-480 V, 3 x 525-600 V, 3 x 525-690 V
• Enclosure Options: IEC: IP00, IP20, IP21, IP54, IP55, IP66; UL: Chassis, Type 1, Type 12, Type 4X

• Fire Emergency Mode for critical ventilation
• Special circuit board coating option for harsh environments
• Condition-based monitoring and cybersecurity level SL1
• Safe Torque Off and Safe Maximum Speed safety functions

Technical Summary

Main Strengths

• Simple installation in outdoor conditions, -25 C to +55 C ambient
• Wide power range and extensive enclosure program
• Easy to use with familiar user interface in 27 languages
• Minimum 10-year designed operational lifetime without component replacements
• Slim down your total cost of ownership (TCO) with optimal energy control
• Intelligence built-in with pre-programmed HVAC control and monitoring features

Application Examples

This series is widely used in the following applications:

• Fans in air handling units
• Pumps in heating and cooling circuits
• Compressors
• Building management systems (BMS) integration
• Commercial and tall buildings

The full model code determines the final configuration of the unit.
