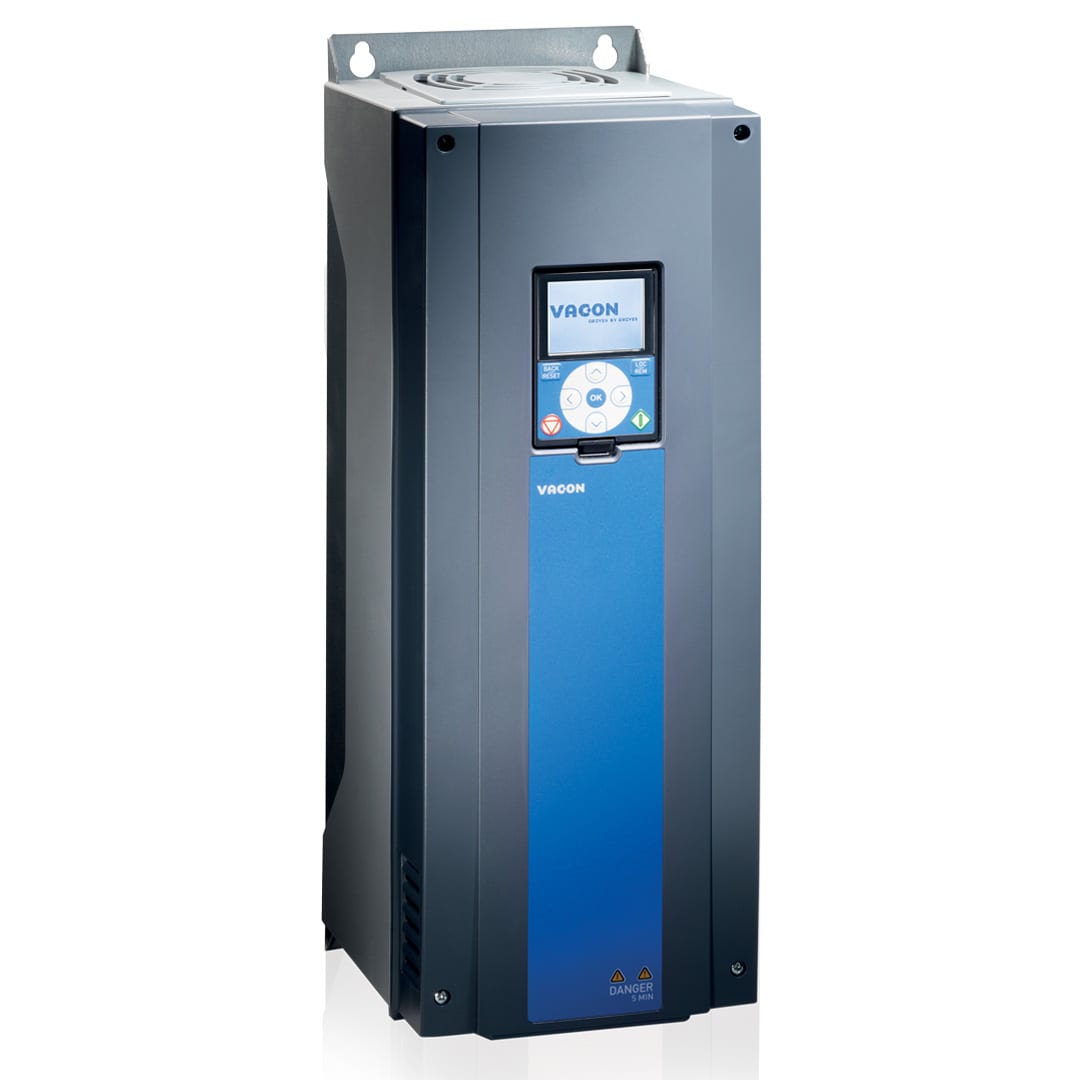

135N5629 VACON 100 FLOW, 208-240 V, IP21/Type 1, air-cooled wall-mounted drive, EMC Class C2, Graphical keypad 261Amp

135N5629 VACON 100 FLOW, 208-240 V, IP21/Type 1, air-cooled wall-mounted drive, EMC Class C2, Graphical keypad 261Amp

From the VACON 100 FLOW Drive product family: 135N5629. VACON 100 FLOW is an AC drive dedicated to improving flow control and saving energy in industrial pump and fan applications. It offers Multipump solutions, application selection menus and standard PID control.

A quotation for this item can be requested through Inverter Store.

Series Information

General characteristics of the VACON 100 FLOW Drive platform:

• Series Power Range: 3 x 208-240 V: 0.55-90 kW; 3 x 380-500 V: 1.1-630 kW; 3 x 525-690 V: 5.5-800 kW
• Series Voltage Range: 3 x 208-240 V, 3 x 380-500 V, 3 x 525-690 V

• Built-in Ethernet and RS485 communication
• Graphical keypad with wizard guides
• Multipump functionality
• Integrated PID control with sensor feedback

Technical Summary

Main Strengths

• Fast and efficient system integration thanks to dedicated functionality for pump, fan and compressor applications
• Extended drive lifetime and minimized lifecycle costs due to electrolytic-free DC link capacitors
• Easy commissioning and start-up as a result of graphical keypad and wizard guides
• Efficient integration into automation systems thanks to built-in Ethernet and RS485 communication
• Multipump solutions for enhanced pump performance
• Application selection menus that help protect equipment

Application Examples

This series is widely used in the following applications:

• Compressors
• Chillers
• Water distribution
• Desalination
• Water-treatment applications

The full model code determines the final configuration of the unit.
